Product details

CONOTECH U/UTP LAN cat. 5e GEL

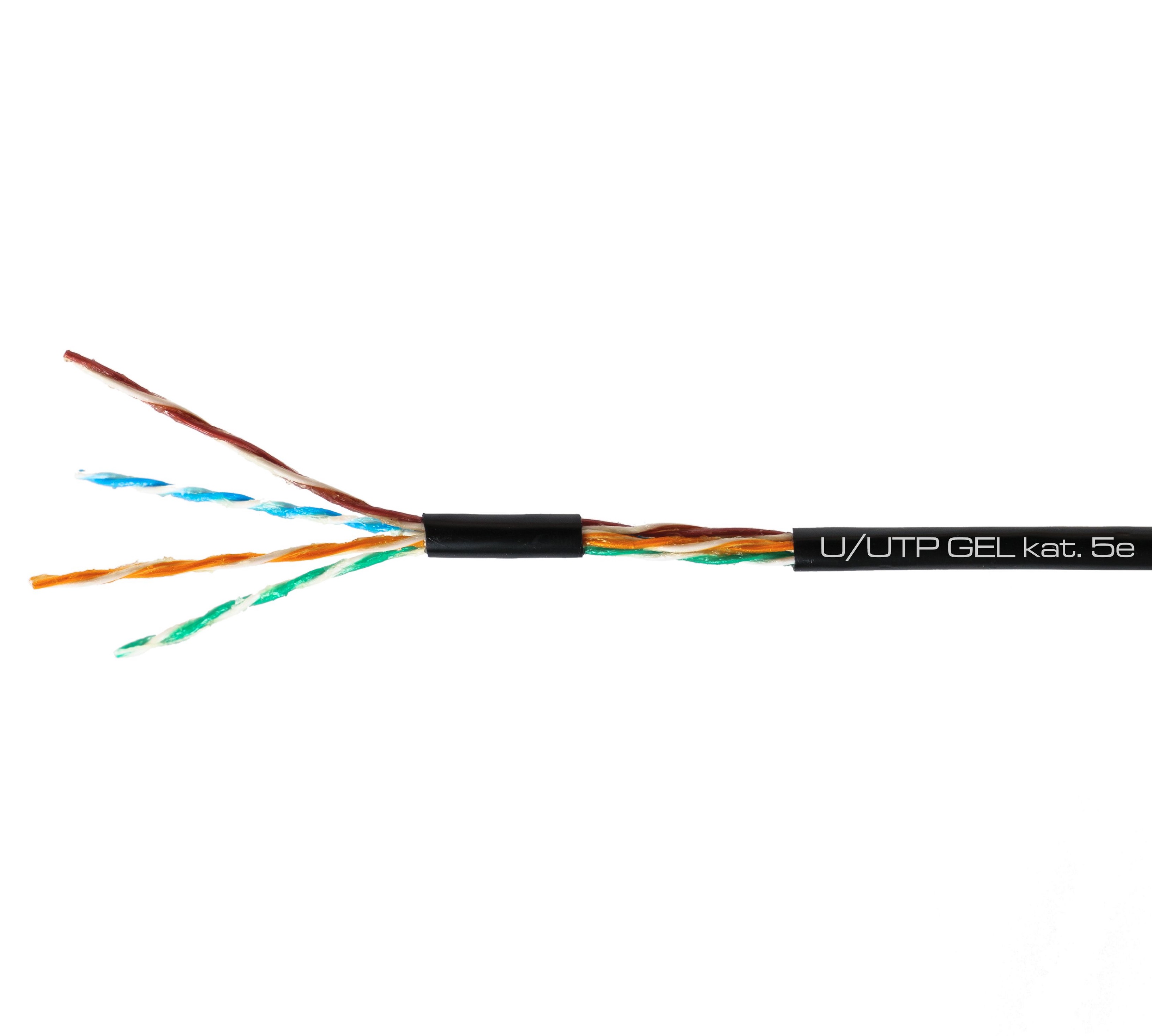

High quality network cable, unshielded U/UTP LAN cable GEL + PE category 5e, consists of four pairs of asymmetrically twisted wires made of pure copper. The conductors insulation are made of HDPE polyethylene, which is characterized by high density and particularly high dielectric insulation. Additionally it was filled with a hydrophobic gel, which is responsible for preventing longitudinal water penetration in the cable. The outer sheath is made of black PE polyethylene with an outer diameter of Ø 6.00 ± 0.02 mm, which protects against mechanical damage, external weather conditions and UV radiation. The 305 m long twisted-pair cable is packed in an Easy Pull Box carton, which enables fast cable laying.

The cable are intended for permanent installation outside the buildings and industrial networks.

- Norms:  EN 50173-1:2011

- Certificated by Institute of Communication.

  • Purpose

    Twisted-pair cable enables data transmission in both analog and digital form. It is used to create wired connections in ICT installations. The cable is used for permanent installation in the structured cabling of buildings, as well as in industrial networks. The outer sheath made of polyethylene PE is resistant to UV radiation and the internal gel filling guarantee uninterrupted signal transmission in external and terrestrial installations, bearing in mind the safety of the installation.

  • Technical parameters

    General specification:

    Type: U/UTP GEL + PE

    Category: 5e

    Internal conductor: 100% CU, four pairs twisted asymmetrically

    Wires insulation: HDPE polyethylene (PE) + Hydrophobic gel

    Outer sheath: polyethylene (PE), UV resistant, black color

    Outside diameter: Ø 6.0 ± 0.02 mm

    Working temperature: -20 oC ÷ +70 o

    Laying temperature: 0 oC ÷ +70 oC

    Purpose: outdoor and underground installations

    Length: 305 m

    Product symbol: NS-450

    Brand: CONOTECH

  • Packing details

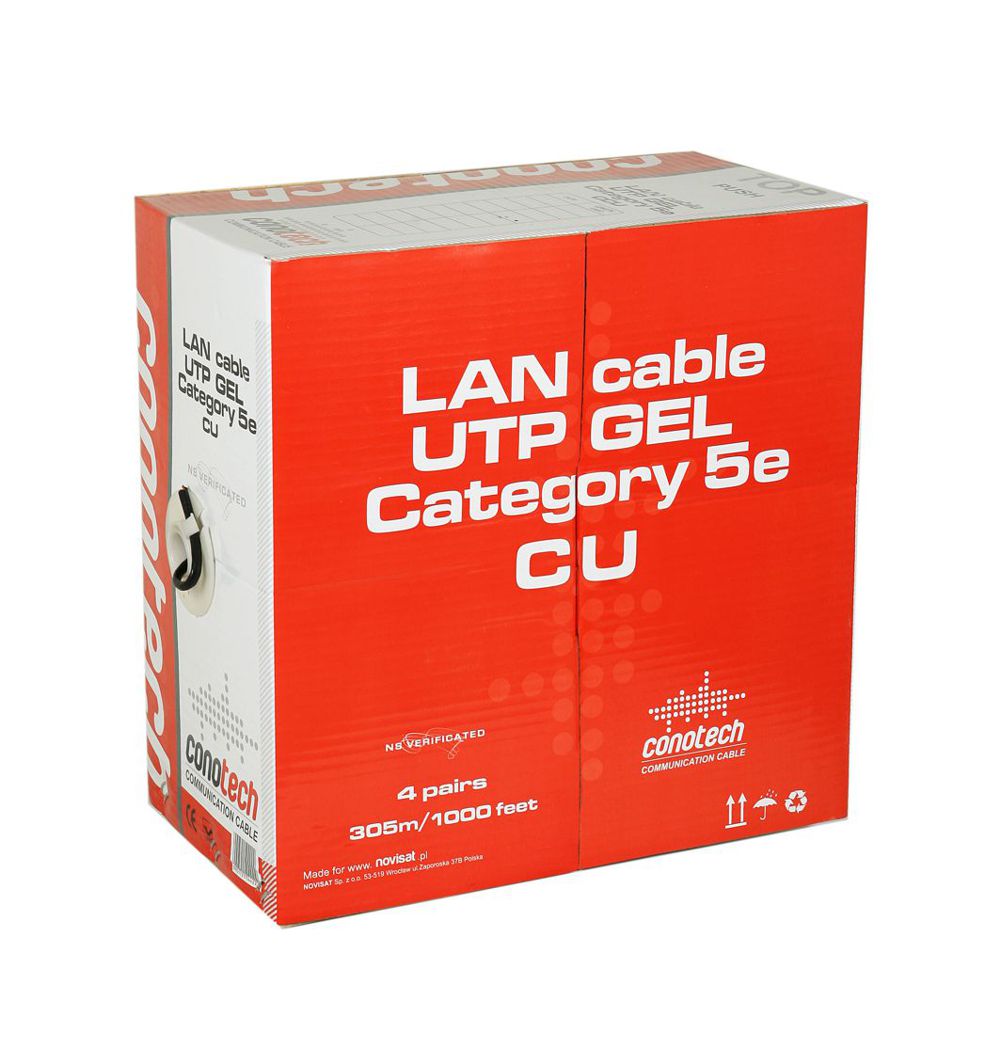

    Packed in an Easy Pull Box.

    Cable length: 305 m

    Dimensions: 34x20x34 cm

    Master carton: 2 pcs.

    Max. order quantity: 48 pcs.
