Product details


High quality, triple-shielded coaxial cable with inner conductor made of copper wire. The conductor is covered with physically foamed nitrogen (N) polyethylene, which has particularly effective dielectric insulation. Shielding is made in accordance with the Trishield standard, which uses triple conductor protector. The first of them is a layer of AL/PET aluminium foil, second one is aluminium wire braiding with optical coverage 98% and the last one is another layer of AL/PET aluminium foil. The outer sheath is made of white PVC, which protects against mechanical damage and allows quick and comfortable cable installation. NS113TRI HQ cable has a high shielding efficiency, confirmed by class A/A+.

- Accordance with CPR (CE) norms: EN 50575:2014, EN 13501-6:2014

- Reaction to fire: ECA

- Certificated by Institute of Communication.

  • Purpose

    Coaxial cable enables transmission of digital and sinusoidal signals in the range 20 Hz- 15 Ghz. It is used for creating lead connections in ICT installations. The NS113TRI HQ cable is dedicated to internal individual and multiswitch installations. It can be successfully used for receiving DVB-T (Digital Video Broadcasting - Terrestrial), FM/DAB radio and DVB-S/S2 satellite television. It is also implemented for industrial installations - CCTV.

    High quality and compliance with EU directives and construction requirements is satisfied by many installers who supervise installation in industrial and development facilities.

  • Technical parameters

    General specification:

    Type: RG-6

    Inner conductor: copper (CU), ø 1.13 ± 0.02 mm

    Dielectric: 4.8 ± 0.02mm PE physically foamed with nitrogen (N)

    First screening: Al/PET foil, thickness 0.04 mm

    Braiding: 144 wires x 0.12mm (thick braid), AL wire

    Second screening: Al/PET foil, thickness 0.04 mm

    Outer diameter PVC: 6,8 mm, white

    Characteristic impedance: 75± 3 Ohm

    Capacitance: 50,3± 2 pF/m

    Optical braiding coverage: >= 98%

    Implementation: indoor installation

    Length: 500 m

    Product symbol: NS-500

    Brand: CONOTECH

  • Packing details

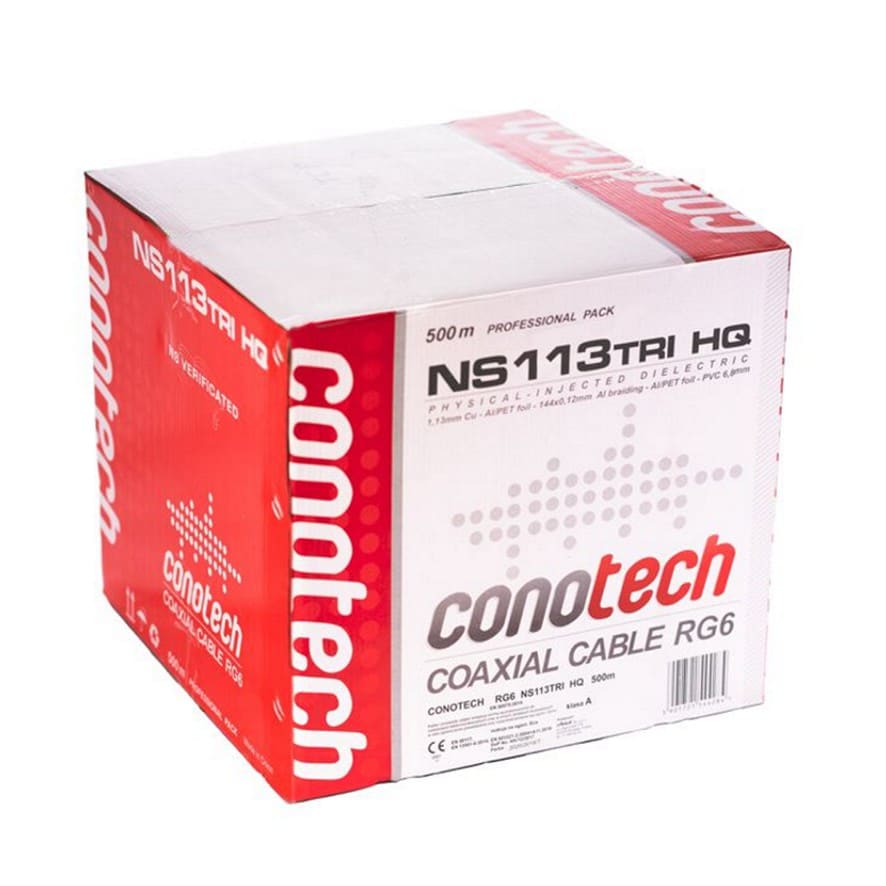

    The cable is on a wooden spool and packed in to protective box.

    Length of roll: 500 m

    Weight: 23,5 kg

    Dimensions: 36x36x33 cm

    Max. order quantity: 24 szt.
