High quality, triple-shielded coaxial cable with inner conductor made of copper wire. The conductor is covered with physically foamed nitrogen (N) polyethylene, which has particularly effective dielectric insulation. Shielding is made in accordance with the Trishield standard, which uses triple conductor protector. The first of them is a layer of AL/PET aluminium foil, second one is aluminium wire braiding with optical coverage 98% and the last one is another layer of AL/PET aluminium foil. The outer sheath is made of black polyethylene (PE), which protects against mechanical damage and external atmospheric conditions. NS113TRI HQ cable has a high shielding efficiency, confirmed by class A/A+.
Coaxial cable enables transmission of digital and sinusoidal signals in the range 20 Hz- 15 Ghz. It is used for creating lead connections in ICT installations. The NS113TRI HQ PE cable is dedicated to external individual and multiswitch installations. It can be successfully used for receiving DVB-T (Digital Video Broadcasting - Terrestrial), FM/DAB radio and DVB-S/S2 satellite television. It is also implemented for industrial installations - CCTV.
High quality and compliance with EU directives and construction requirements is satisfied by many installers who supervise installation in industrial and development facilities.
Inner conductor: copper (CU), ø 1.13 ± 0.02 mm
Dielectric: 4.8 ± 0.02mm PE physically foamed with nitrogen (N)
First screening: Al/PET foil, thickness 0.04 mm
Braiding: 144 wires x 0.12mm (thick braid), AL wire
Second screening: Al/PET foil, thickness 0.04 mm
Outer diameter PE: 6,8 mm, black polyethylene
Characteristic impedance: 75± 3 Ohm
Capacitance: 50,3± 2 pF/m
Optical braiding coverage: >= 98%
Implementation: outdoor installation
Length: 300 m

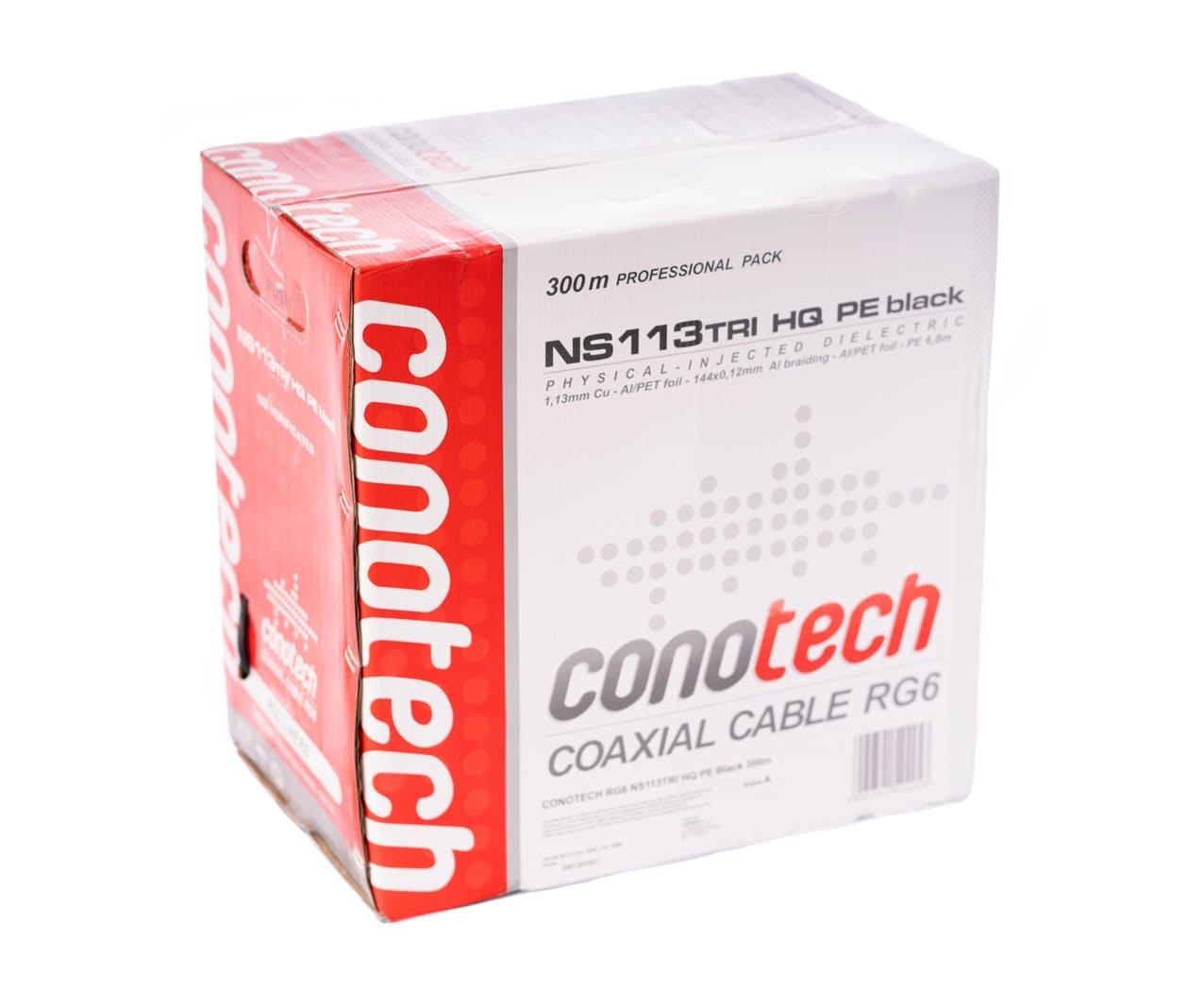

The cable is packed in to Pull-Box with rotating spool for easy developing.
Length of roll: 300 m
Weight: 14 kg
Dimensions: 40x40x26 cm
Max. order quantity: 36 szt.
