Product details


High-quality network cable, shielded F/UTP LAN category 5e, consists of four pairs of asymmetrically twisted wires made of pure copper. The conductors insulation are made of HDPE polyethylene, which is characterized by high density and particularly high dielectric insulation. The cable has an aluminum screen and a steel/copper-plated ground, which increases the insensitivity to electromagnetic interference in signal transmission. The outer sheath is made of gray PVC with an outer diameter of Ø 6.00 ± 0.02 mm, which protects against mechanical damage. The 305 m long twisted-pair cable is packed in an Easy Pull Box carton, which enables fast cable laying.

The cable are intended for permanent installation inside the bulidings and industrial networks.

- Accordance with CPR (CE)

- Norms: EN 50575:2014

- Reaction to fire: ECA

- Certificated by Institute of Communication.

  • Purpose

    Twisted-pair cable enables data transmission in both analog and digital form. It is used to create wired connections in ICT installations. The cable is used for permanent installation in the structured cabling of buildings, as well as in industrial networks exposed to the influence of external electromagnetic interference. Its functional properties ensure simple and comfortable locating inside buildings, bearing in mind the safety of the installation.

  • Technical parameters

    General specification:

    Type: F/UTP

    Category: 5e

    Internal conductor: 100% CU, four pairs twisted asymmetrically

    Screen: aluminum with a thickness of 0.04 mm (AL)

    Grounding: steel-copper plated with a diameter of 0,50 mm (FeCu)

    Wires insulation: HDPE polyethylene (PE)

    Outer sheath: PVC, Gray color

    Outside diameter: Ø 6.0 ± 0.02 mm

    Flammability class: Eca

    Working temperature: -20 oC ÷ +70 o

    Laying temperature: 0 oC ÷ +70 oC

    Purpose: Inside buildings

    Length: 305 m

    Product symbol: NS-903

    Brand: CONOTECH

  • Packing details

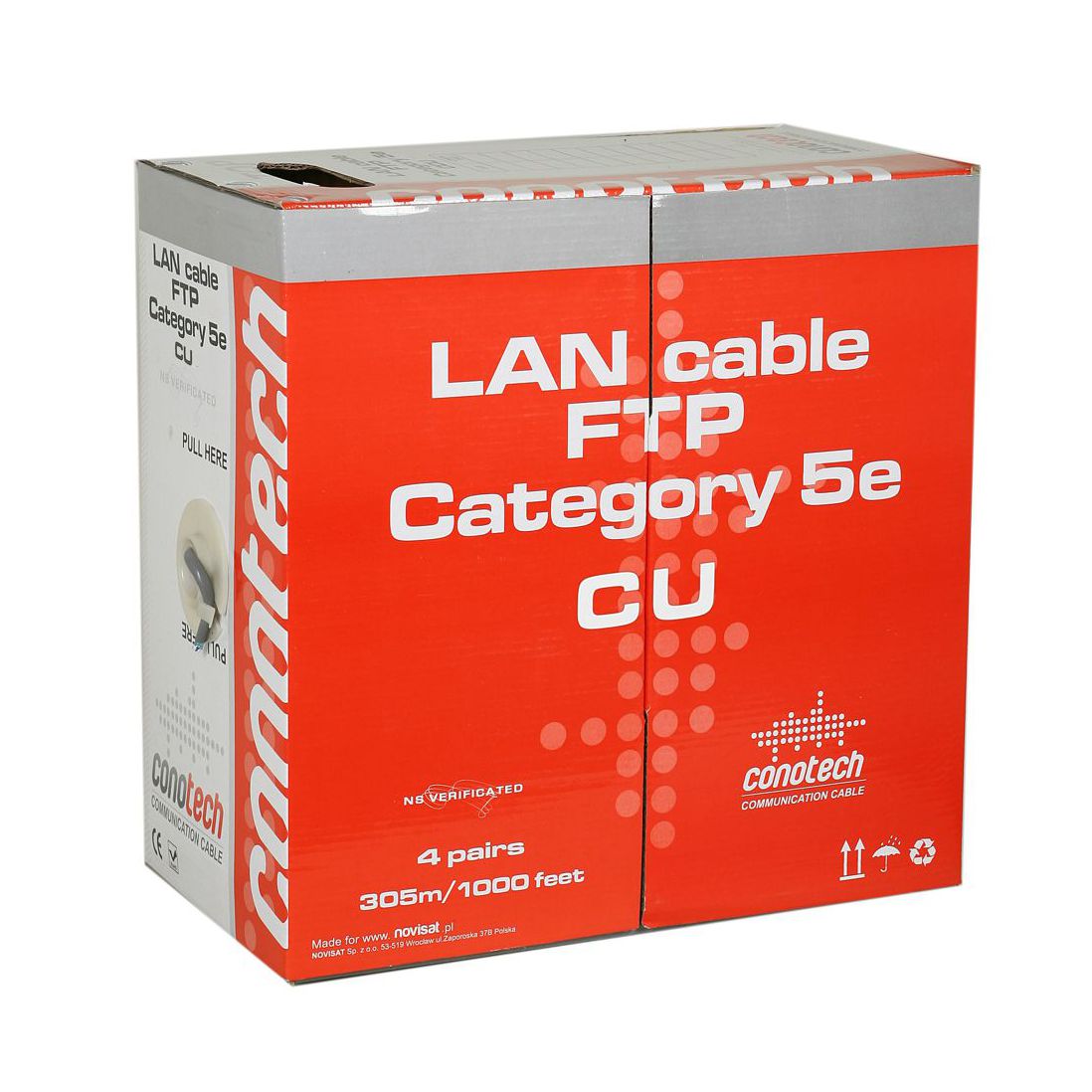

    Packed in an Easy Pull Box.

    Cable length: 305 m

    Dimensions: 34x20x34 cm

    Master carton: 2 pcs.

    Max. order quantity: 48 pcs.
